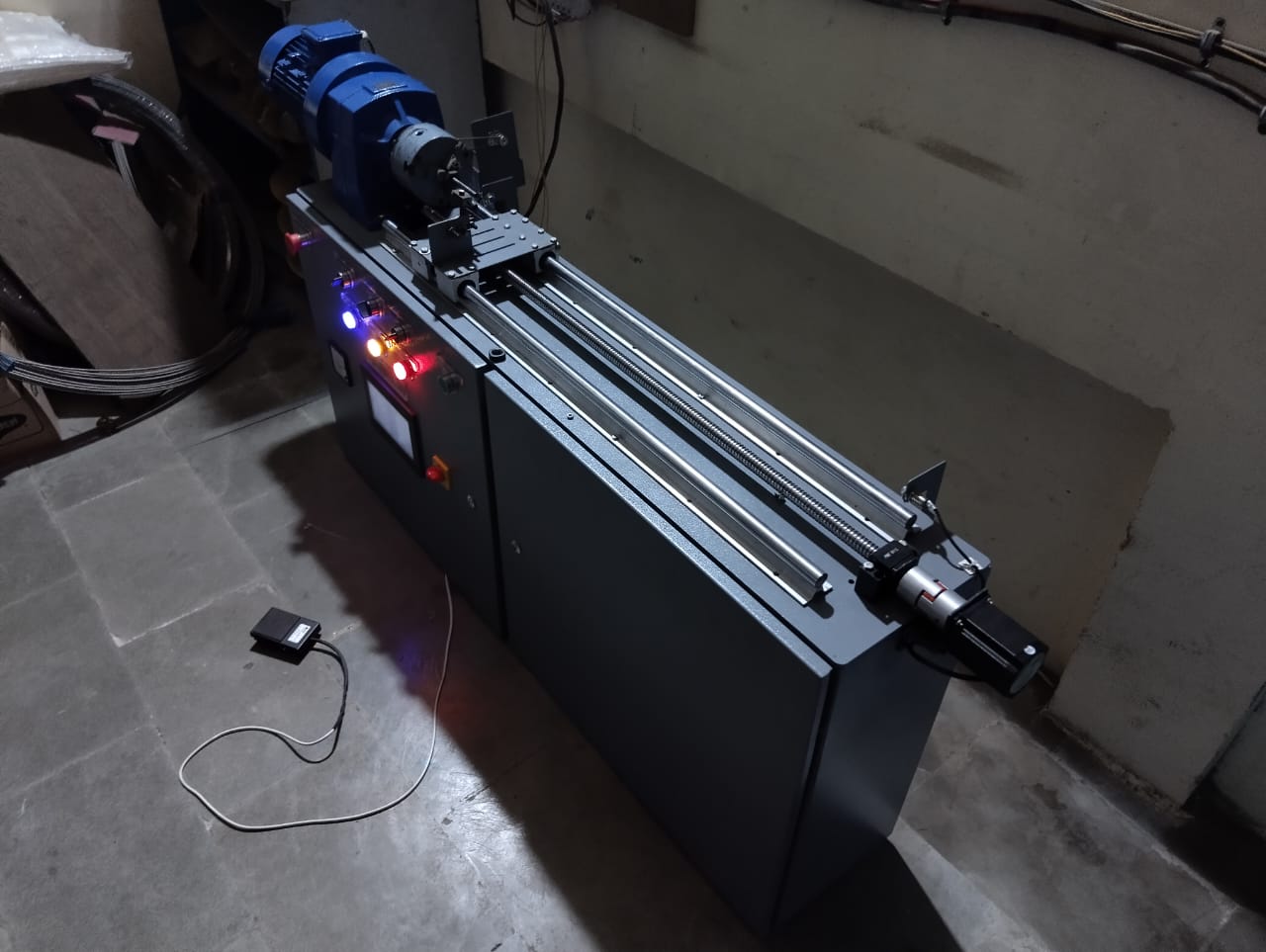

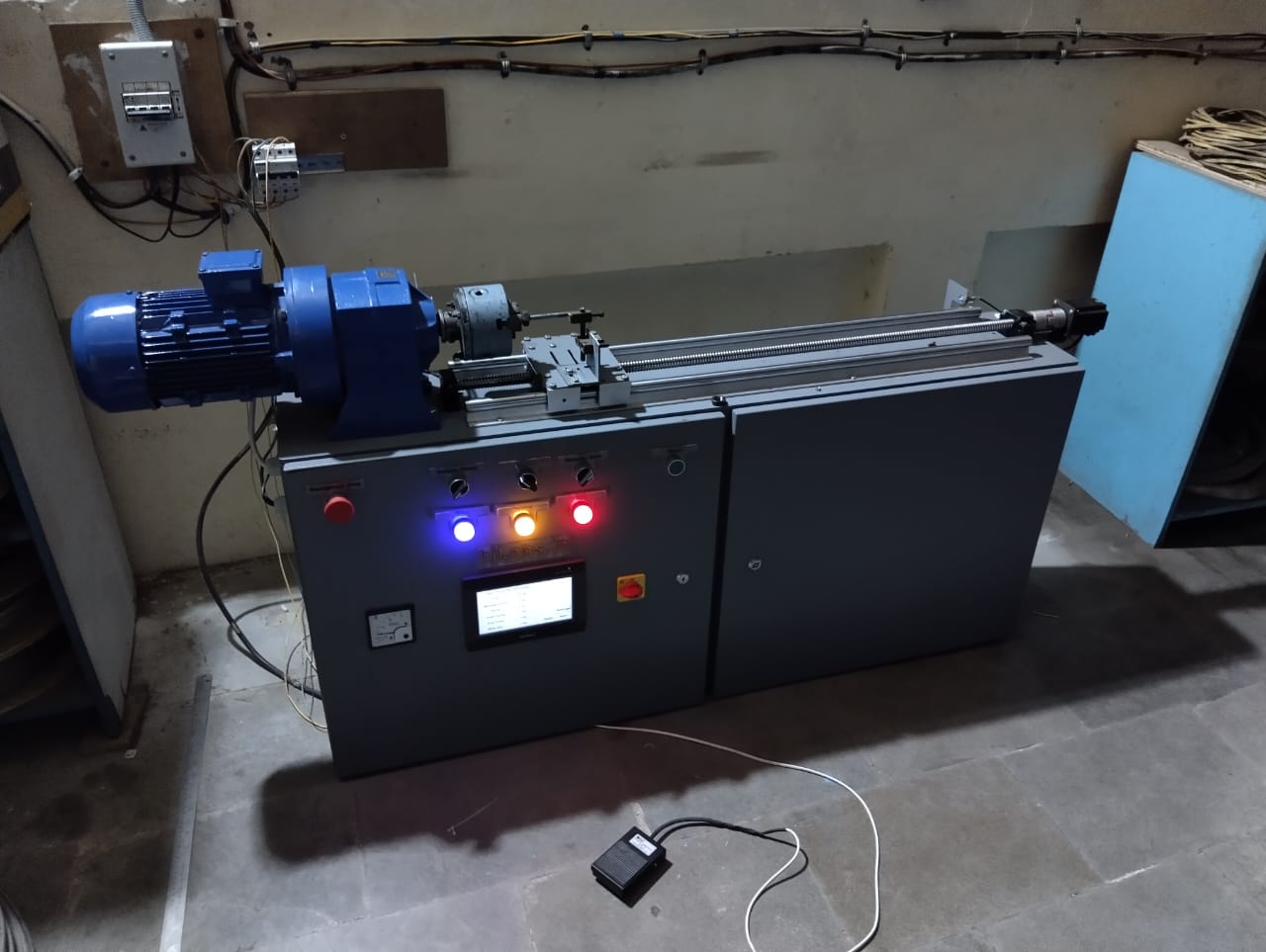

Semi Automatic Spring Coiling Machine
Precision semi-automatic spring coiling machine for manufacturing compression, extension, and torsion springs. Handles wire from 0.3 mm to 4 mm diameter across steel, stainless steel, and copper alloys. Digital controls for pitch, diameter, and coil length. Includes 2-day onsite training.
Technical Specifications
| Wire Diameter | 0.3 mm – 4 mm |
| Spring Outer Diameter | 3 mm – 50 mm |
| Coil Length | 5 mm – 300 mm |
| Pitch Adjustment | 0.5 mm – 10 mm (stepless) |
| Production Speed | 10 – 100 coils/min |
| Wire Materials | Steel, Stainless Steel, Copper |
| Input Voltage | 220V AC, 50/60Hz |
| Warranty | 1 Year (parts + labour) |
Watch It In Action
Types of Springs Produced
Compression Springs
The most common spring type. Used in push-button switches, shock absorbers, valves, and industrial machinery. Open-coil or closed-coil designs supported.
Extension Springs
Used in toys, automotive door handles, trampolines, and tensioning mechanisms. Coiled tight with hooks at each end to resist stretching forces.
Torsion Springs
Used in hinges, latches, clothes pegs, and garage doors. Exert rotational force — legs are formed straight or at custom angles using supplied tooling.
Product Description
The hjLabs Semi Automatic Spring Coiling Machine is designed for spring manufacturers, precision engineering workshops, and OEM component makers who need consistent, repeatable spring production without the cost of a fully CNC spring coiler.
The machine handles a wide range of wire materials and gauges: carbon steel (the most common for compression springs), stainless steel 304/316 (for corrosion-resistant applications in food, medical, and marine industries), and copper/brass wire (for electrical and decorative springs). Wire from 0.3 mm (fine watch springs and instrument springs) up to 4 mm (heavy compression springs for automotive and industrial use) is supported.

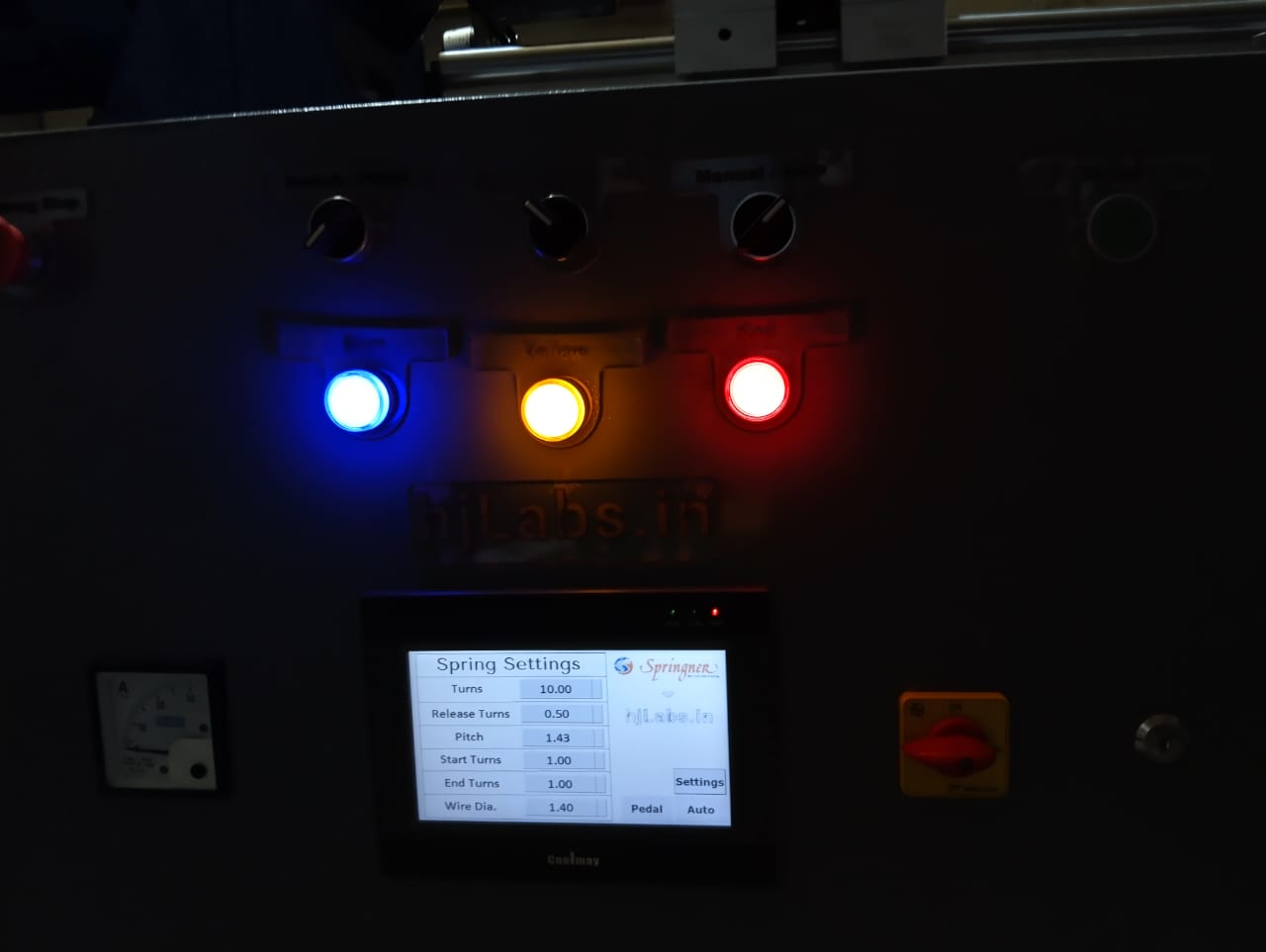

Spring outer diameter is adjustable from 3 mm to 50 mm using interchangeable forming pins. Pitch (coil-to-coil spacing) is steplessly adjustable from 0.5 mm to 10 mm using the digital pitch controller. Free length is set by the coil count and pitch combination, up to 300 mm finished spring length.

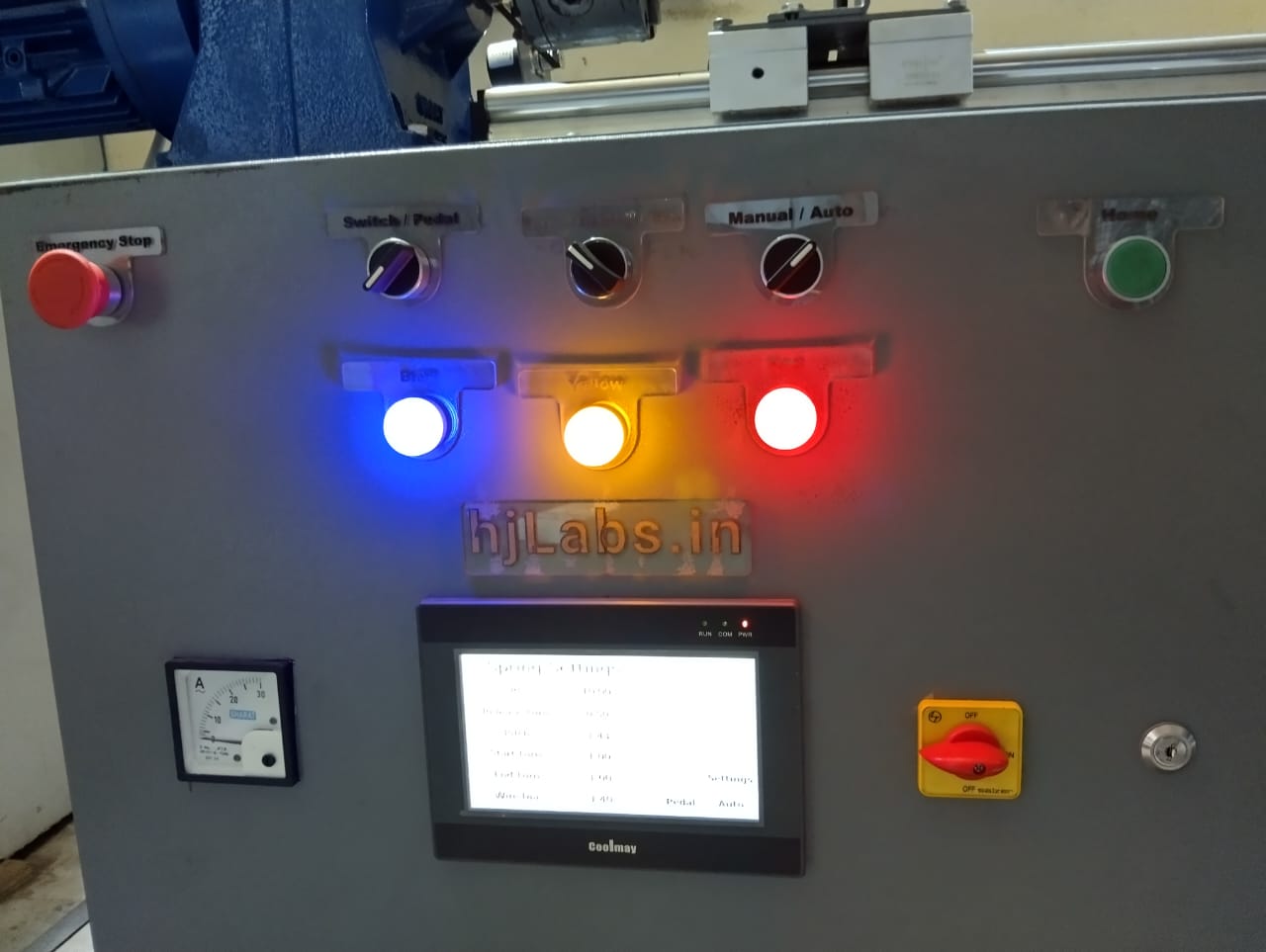

The semi-automatic design means the operator loads wire and initiates each coil via footswitch or button, while the machine controls forming, pitch advancement, and cutoff automatically. At 10–100 coils per minute, productivity is 5–10× manual coiling.
The hjLabs.in semi-automatic spring coiling machine is trusted by spring manufacturers across Gandhinagar, Gujarat, Mumbai, Pune, and Chennai. Ideal for small and medium spring production units looking to upgrade from manual coiling.
Every purchase includes a 2-day onsite training visit from the hjLabs technical team to commission the machine, calibrate for your specific wire and spring specifications, and train your operators. For high-volume production requirements, explore our fully automatic CNC spring coiling solutions, or contact us to discuss your specific spring manufacturing needs.
Frequently Asked Questions
Need a Custom Version?
We design fully automatic CNC spring coiling machines for high-volume production, as well as custom tooling for special spring geometries, non-circular cross-section wire, and multi-wire coiling. Explore our custom automation solutions or get in touch directly.
